Introduction to Kubernetes?

If the Docker Engine fails, all containers running on that engine will go down, making them inaccessible to users.

This is where Kubernetes comes in — it manages multiple Docker Engines, known as Docker nodes, within a Kubernetes cluster. This setup ensures high availability and fault tolerance.

For example, if a container on the third node fails, Kubernetes automatically reschedules and migrates that container to a healthy node in the cluster.

🧠 Container Orchestration

Container orchestration refers to managing the deployment, scaling, networking, and availability of containers across a cluster of Docker/worker nodes.

In Kubernetes, these nodes form a single pool of compute resources that is fault-tolerant and self-healing.

🔧 Popular Container Orchestration Tools

Docker Swarm
Kubernetes 🌟
Mesosphere Marathon
AWS ECS & EKS
Azure Container Service
Google Kubernetes Engine (GKE)
CoreOS Fleet
OpenShift

🚀 What Kubernetes Provides

Service Discovery & Load Balancing
Automatically exposes containers using DNS names or IPs and distributes traffic across them.
Storage Orchestration
Mounts persistent storage from local disks or cloud providers like:
SAN (Storage Area Network)
NAS (Network Attached Storage)
AWS EBS volumes
Ceph
Automated Rollouts & Rollbacks
Gradually updates applications and rolls back if something goes wrong.
Automatic Bin Packing
Places containers based on resource requirements and availability to maximize efficiency.
Self-Healing
Automatically restarts failed containers, replaces unresponsive nodes, and kills misbehaving containers.
Secrets & Configuration Management
Manages sensitive data like passwords, SSH keys, and environment variables securely and separately from your application code.

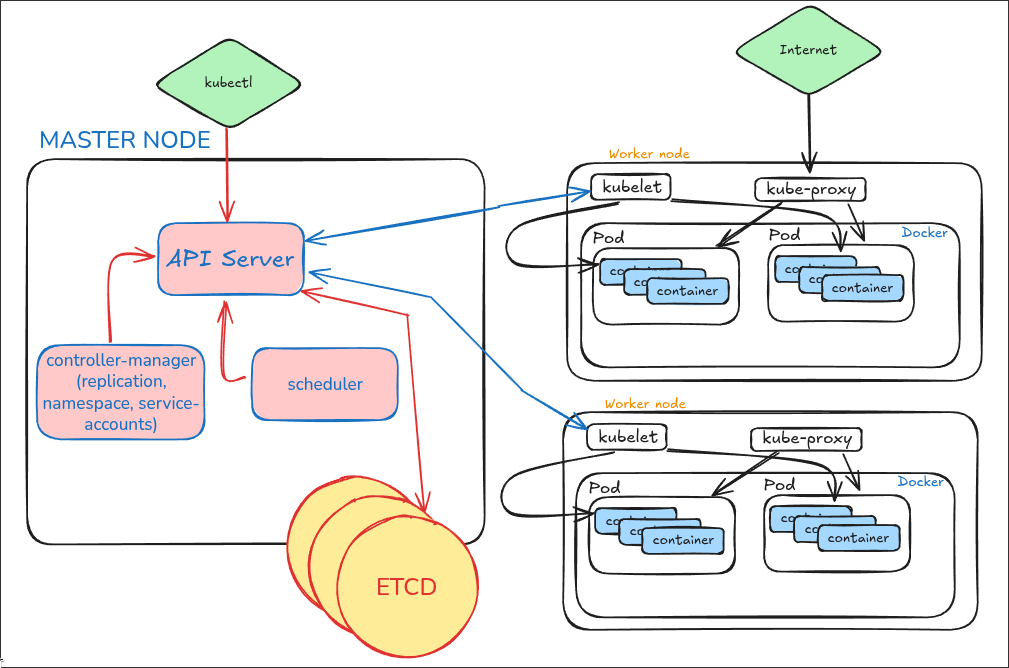

📊 Kubernetes Architecture

alt text

link to model

🎛 Components

🧠 Master Component: Kube API Server

Acts as the central communication hub for all Kubernetes components.
Exposes the Kubernetes API, making it the frontend of the control plane.
Handles all external and internal requests, including scheduling, deployments, and health checks.
Admins interact with it via the [kubectl](https://kubernetes.io/docs/reference/kubectl/) CLI or through automated systems.
A web-based dashboard can be integrated using the API.
Enables integration with third-party tools and services like CI/CD, monitoring, and more.

💾 Master: etcd Server

Stores all cluster data for the Kubernetes control plane.
A consistent and highly available key-value store that serves as Kubernetes' backing store.
The Kube API Server retrieves and writes data to etcd.
It should be backed up regularly to ensure disaster recovery.
Maintains the current state of all objects in the cluster (nodes, pods, configs, etc.).

📦 Master: Kube Scheduler

Monitors newly created pods that do not yet have an assigned node.
Selects the most suitable node for each pod to run on.
Key factors considered during scheduling include:
Resource requirements (CPU, memory)
Hardware/software/policy constraints
Affinity and anti-affinity rules
Data locality
Inter-workload interference
Deadlines and priorities

🧩 Master: Controller Manager

Logically, each controller is a separate process.
However, to reduce complexity, they are all compiled into a single binary and run in a single process: the kube-controller-manager.

These controllers include:

Node Controller
Detects and responds when nodes become unresponsive or go offline.
Replication Controller
Ensures the correct number of pod replicas are running for each replication controller object in the cluster.
Endpoint Controller
Populates the Endpoints object, connecting Services to their corresponding Pods.
Service Account & Token Controller
Automatically creates default service accounts and API tokens for newly created namespaces.

🧱 Node Components

📌 Kubelet

An agent that runs on every node in the cluster.
Ensures that the containers described in the PodSpec are running and healthy.
Communicates with the Kube API Server to receive instructions and report status.

🌐 Kube Proxy

A network proxy that also runs on each node in the cluster.
Maintains network rules on nodes, allowing:
Communication between Pods within the cluster
External access to Services from outside the cluster
Handles TCP/UDP forwarding and supports virtual IPs via iptables or IPVS.

🔧 Container Runtime

The software responsible for running containers on each node.
Kubernetes supports multiple container runtimes via the Container Runtime Interface (CRI), including:
Docker
containerd
CRI-O
rktlet (now deprecated)

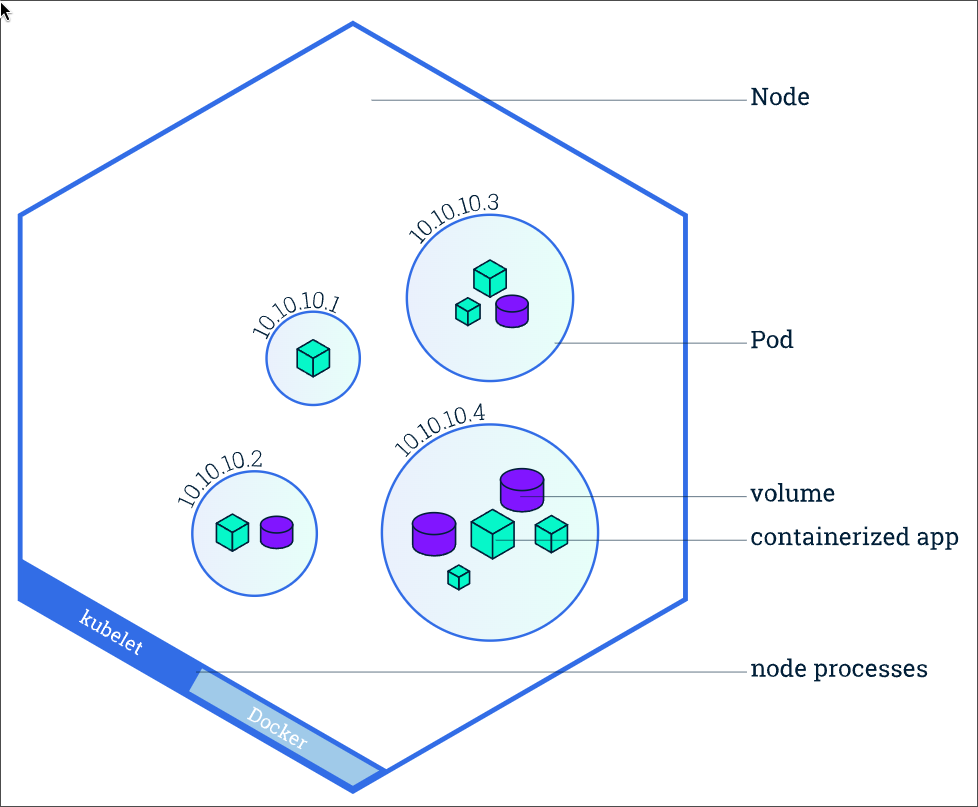

📦 PODS

(Reference: Imran Teli)
